Problem: Home security is a difficult endeavor. Everyone knows that it's very expensive to hire professionals for every single task, and they might not even be sure if they're getting their money's worth. Homeowners also don't know how to go about securing their property against potential threats without help.
Agitate: Home intrusions are on the rise, and it's in your best interest to keep your property safe at all costs. A burglar can enter a home and cause serious injuries or worse, even if you have a dog or alarm system sitting at home. They might also steal something valuable from you that you never get back!
Solve: GSM Alarm Systems protect your business, home, and loved ones by using cellular technology to send you updates on activity in real-time. Burglar alarms are also installed to deter intrusions and prevent theft. Our home alarms will help you protect your family from the intruders that could break into your home when you're away.

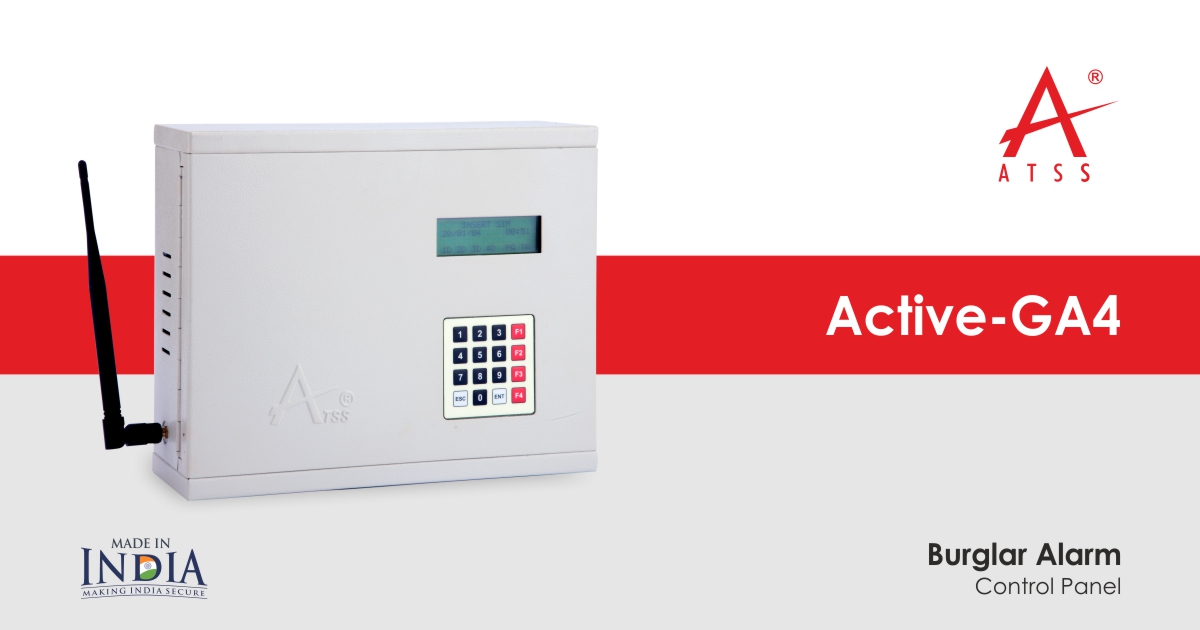

Active-GA4 Four Zones GSM Alarm Panel with 64 Bits LCD Display-Alarm System
0-240 Sec Delay Time Setting
Daily Alert
1 Master / 5 Individual User Passwords
16 Texts Sms Option Available
50 Event Logs Info
On Board Keypad With 64 Bit Lcd
24 Hrs Panic/Tamper Zones
4 Zones Alarm Panel
Arm/Disarm Through Password/Sms
Changeable User/Master Password
Immediate And Time Delay Zones Available
Instant Siren And Call/Sms Alert For Zone Open
Zone Status Indicators On Lcd
Auto Arming Provision For Zones
Individual Voice And Text Message Available For Each Zone
20 Sec Recording Time For Individual Voice Message
Built In Gsm Modem
Memory Available To Store 10 Phone Numbers
Receives Sms While Arm/Disarm
Balance Status Can Be Checked By Sms
Recorded Message Playback Speaker Provision Available
If Network Strength Is Off, System Will Be Operated As Normal Panel
Fully Reprogrammable For Future Options
Two Sirens With Tamper Provision
Modified Siren Out Timing (Up To 4 Hours)
Built In Battery Backup Provision
Low Battery/Reverse Battery Indicators
Resettable Fuse
Control Panel Door Tamper Available
External Relay For Trigger Mode And Application Mode
In Application Mode Relay Can Be Operated By Sms
Micro-Controller Based System
Solution
The ATSS Hard Wired GSM Burglar Alarm System – Active GA-4 Consists of LCD Keypad, 4 Zones, 1 Panic Zone, 2 Siren With Tamper Provisions, Control Panel Tamper. Activation & Deactivation of the system is done through Keypad & Mobile SMS.
| POWER SUPPLY | |
|---|---|
| Max Power Consumption | 36 Watts |
| AC Main Supply | 220-240 V AC /50 Hz |
| Transformer-Step down | 230 V AC/50 Hz(Pri) | 18 V AC/2 A (Sec) |
| BATTERY | Battery is full recommended |
| Battery type | Lead Acid Rechargeable Battery |
| Max Recharging Voltage-Input | 13.7 V DC |
| Max Voltage/Current ratings | 12 V DC/7 AH |
| ZONES | |
| Zone Response Time | < 500 Millisecond |
| Zone Loop Resistance | < 1kilo Ohm For Normally Closed |
| Max Output Voltage/Current for Sensor Supply | 12 V/500 MA |
| Max Output Voltage/Current for Siren Supply | 12 V/750 MA |
| Max Length of Sensor Cable (multi core cable) | 150 m (Depends on cable resistance) |
| Max Length of Siren Cable (multi core cable) | 75 m (Depends on cable resistance) |
| RELAY-NORMALLY CLOSED | |
| Max Output Voltage/Current | AC 240 V/5 A |
| Max Output Voltage/Current-Keypad Rly | AC 120 V/3 A |
| ENVIRONMENTAL | |
| Environment | Residential/ Commercial/ Light Industrial |
| Max Humidity | 95% Non-Condensing |
| Operating Temperature | 0° C To 45° C |
| Storage Temperature | -20° C~+60° C |
| PHYSICAL | |
| Colour | Grey Coloured Metal Box |
| Control Panel Dimensions(mm) | (H X W X L)=230*95*330 |
| Weight | 3.4kg |
Waste No More Time!
Install Intruder Alarm Prevent a Crime Before it Happens.
