ACTIVE GD

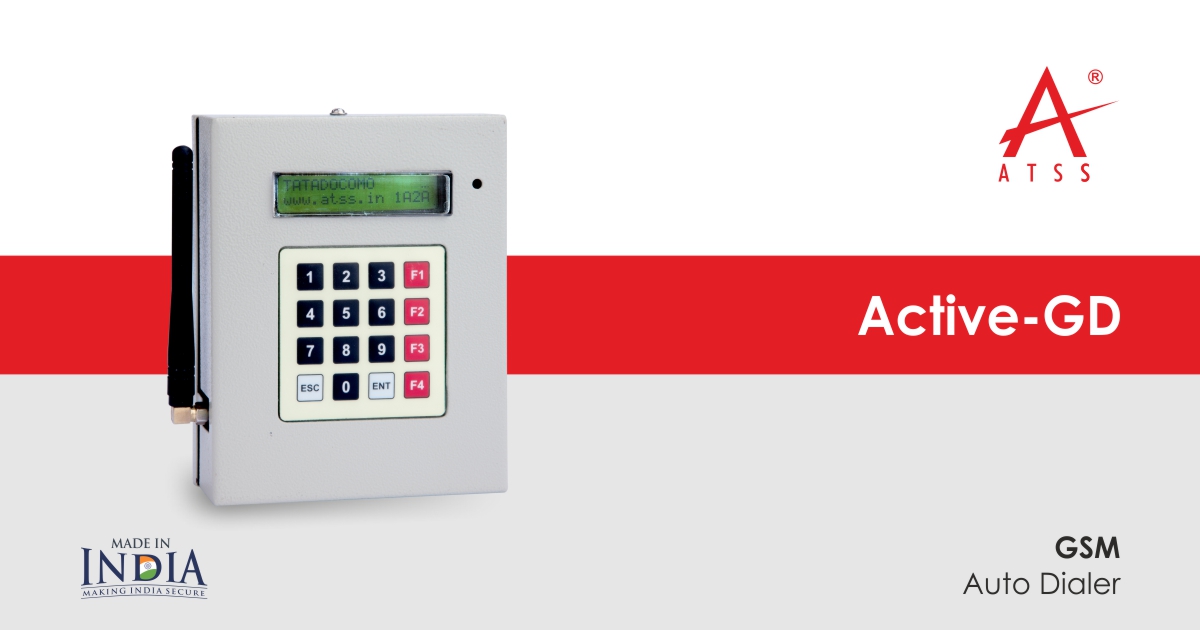

GSM-Dialer-Active-GD

Problem: It's unfortunate that alarm systems are so expensive and bulky. It's also a huge hassle to monitor this equipment on a daily basis.

Agitate: What if you could get an additional layer of security without having to pay high monthly fees? Imagine if your home alarm system was automatically monitored.

Solve: Introducing the GSM Auto Dialer. It is the best choice for all your security monitoring needs, as it can be used to dial emergency telephone numbers when any of the conditions are met - without you having to do anything at all!


Active-GD GSM Dialer-2 Trigger Controlled by Password/SMS with 32 Bit LCD keypad

2 Trigger Available NO, NC (Normally Open/Close)

16 Texts Sms Option Available

On Board Keypad With 32 Bit Lcd

Arm/Disarm Through Password / Sms

Changeable User Password

Instant Call/Sms Alert For Trigger Open

Individual Voice And Text Message Available For Both Trigger

20 Sec Recording Time For Individual Voice Message

Built In Gsm Modem

Memory Available To Store 10 Phone Numbers

Receives Sms While Arm/Disarm

Arm/Disarm By Sms Can Be Controlled By First Three Admin Numbers

Balance Status Can Be Checked By Sms

Recorded Message Playback Speaker Provision Available

Control Panel Door Tamper Available

External Relay For Trigger Mode And Application Mode

In Application Mode Relay Can Be Operated By Sms

Used For Both Intrusion And Fire Alarm Panel

Micro-Controller Based System

Android Application

Solution

The Active GD is a GSM Based Alarm dialer; Which Dials up/Sends SMS to the Stored Numbers using the GSM Frequency – Informing about the Event When the device is triggered. The System Consists of LCD Display with Keypad 2 Triggers.

POWER SUPPLY
Maximum Power Consumption 24 Watts
DC/AC Main Supply 12-24 V/2 amps
ZONES
Zone Response Time < 500 Millisecond
Zone Loop Resistance < 1kilo Ohm For Normally Closed
Max Length of Sensor Cable (multi core cable) 150 m (Depends on cable resistance)
GSM Antenna 3 db required
RELAY-NORMALLY CLOSED
Max Voltage/Current ratings AC 240 V/5 A
ENVIRONMENTAL
Environment Residential/ Commercial/ Light Industrial
Max Humidity 95% Non-Condensing
Operating Temperature 0° C To 45° C
Storage Temperature -20° C~+60° C
PHYSICAL
Colour Grey Coloured Metal Box
Control Panel Dimensions(mm) (H X W X L)=150*45*130
Weight 570g

Waste No More Time!

Install Intruder Alarm Prevent a Crime Before it Happens.
